In Stock
- Ships in 1-2 Business Days
Ordering Information
Quick View
Getting Details
-
62.80 lbs
-
Key Features

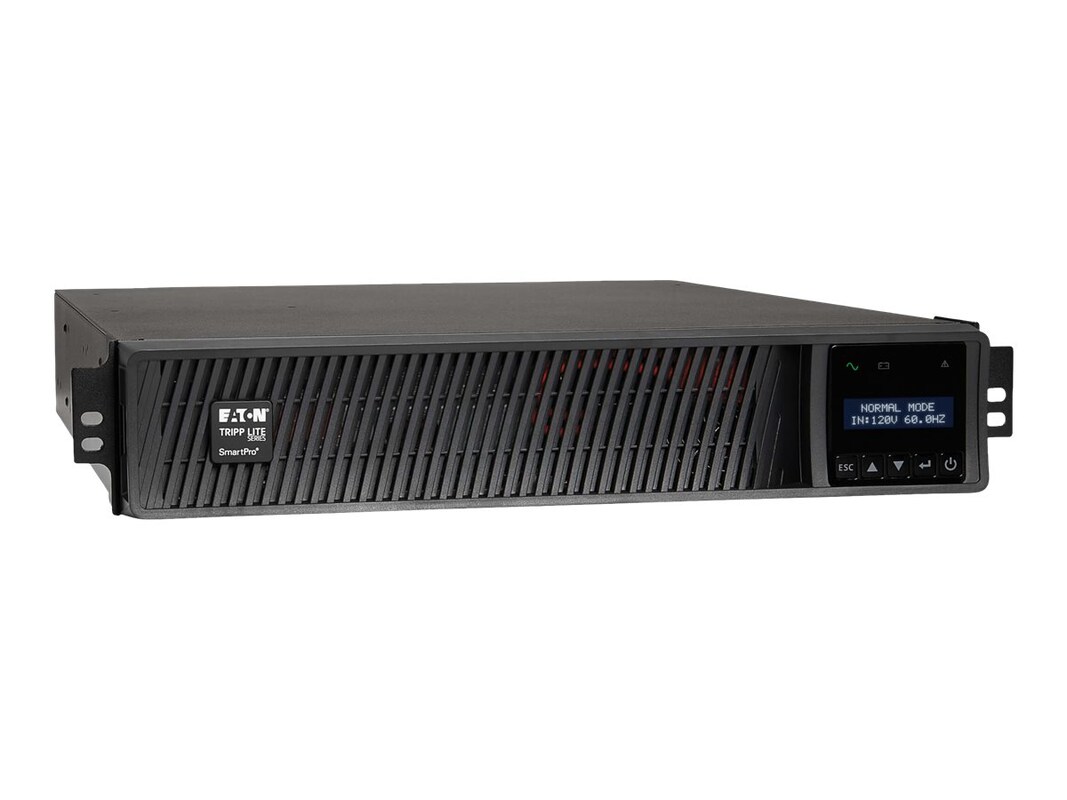

Tripp Lite SMART3000RM2U line interactive 2U rack/tower UPS with 3000VA / 3000W / 120V capacity
Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
NEMA L5-30P input plug; 8 NEMA 5-15/20R and 1 L5-30R output receptacles, Two independently switchable output load banks
Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
High 98% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
Internal batteries offer 10 minutes at 50% load (1125W) and 3.5 minutes at 100% load (2250W)
Extended runtime is available with optional BP48V24-2U (limit 1) OR BP48V60RT3U (no limit) external battery packs (max output de-rates to 1600 watts with external batteries)
External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
LCD interface also supports a number of advanced user setup and operating preferences
Ships with 4-post rackmount installation hardware; Optional 2POSTRMKITWM enables 2-post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable
-
# Ports: 9Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15 (F)Connector: Power NEMA 5-30Connector: Power NEMA L5-30 (F)Connector: Power NEMA L5-30 (M)
-
UPS, software, cabling, mounting hardware, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Line interactiveColor: BlackEnclosure Type: Plug-in moduleForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Information: Requires product registrationWarranty Period: 3 yearsWeight Taxonomy: 74.52lbs
-
3.5"h x 17.5"w x 19.5"d
-
(1) NEMA L5-30R outlet
(4) NEMA 5-15R outlets
(6) NEMA 5-20R outlets
(1) NEMA L5-30P with 10 ft., 10 gauge power cord
(2) DB9 serial ports
(2) USB ports
(1) EPO RJ-11 port
-
Battery Run Time (max): 4minPower Capacity (VA): 3000VAPower Provided: 2250WPower Provided: 3kWSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
Output:
Output volt-amp capacity: 3000VA
Output power capacity: 2250W
Output nominal voltage: 120VAC
Overload protection: Resettable circuit breaker
Output voltage regulation:
Line mode: Sine wave line voltage 120VAC (-18% / +8%)
Battery mode: Sine wave output 120VAC +/-5%
Output frequency regulation:
Line mode: passes line frequency of 60Hz +/-10%
Battery mode: inverter output regulated to 60Hz +/-0.5Hz
Input:
Maximum input current: 24A
Recommended electrical service: 30A 120VAC
Battery:
Full load runtime (minutes) 3.5 min. (2250w)
Half load runtime (minutes) 10 min. (1125w)
Expandable battery runtime Extended runtime supported via optional external battery packs
External battery pack compatibility BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)
DC system voltage (VDC) 48
Battery recharge rate (included batteries) Less than 4.5 hours from 10% to 90%
Replacement battery cartridge (internal UPS battery replacement) RBC94-2U
Battery Access Front panel battery access door
Battery replacement description Hot-swappable, user replaceable batteries
Voltage regulation:
Overvoltage correction: input voltages between 128 and 147VAC are reduced by 12%
Direct pass through: input voltages between 105 and 127VAC are passed on to connected equipment unchanged
Brownout correction: input voltages between 95 and 104VAC are boosted by 12%
Severe brownout correction: input voltages between 79 and 94VAC are boosted by 24%
Surge/Noise suppression:
AC surge suppression: 480 joules
AC suppression response time: instantaneous
EMI / RFI AC noise suppression: Yes
Emergency Power Off (EPO) -
This product is subject to our return policy. Please see our complete return policy for details.
-
71.75 lbs
-
Compliant Standards: CULCompliant Standards: FCC Class A certifiedCompliant Standards: NOMCompliant Standards: UL 1778
-
39121011
-
2 Years
-
2 Years
-
2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty. Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
