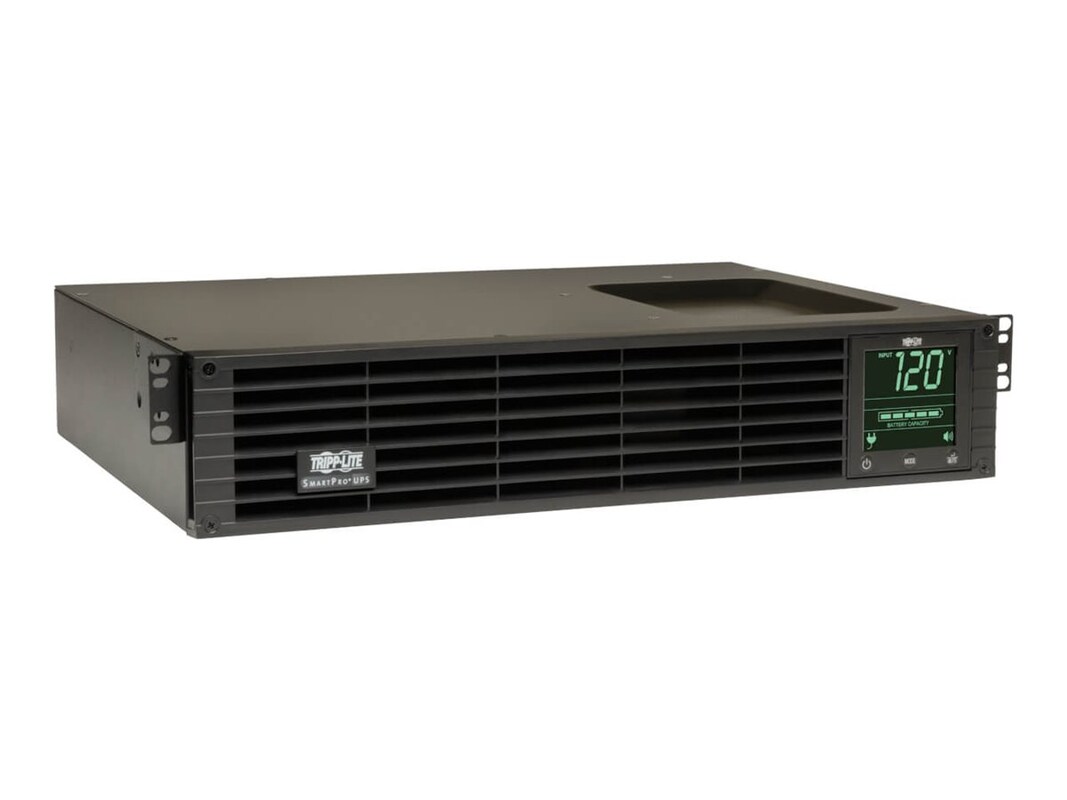

Tripp Lite SmartPro 1500VA 120V 2U Rack Tower Line Interactive Tower UPS (8) 5-15R Outlets (SM1500RMXL2UTAA)
Ordering Information
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
The Tripp Lite SM1500RM2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This line interactive UPS system offers voltage regulation, surge suppression and long lasting, expandable battery support for personal computers, internetworking equipment and other sensitive electronics. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 83V and overvoltages up to 147V back to usable 120V levels.
This unit gives you complete power protection in an attractive black 2U rackmounted configuration. It includes (8) battery supported outlets arranged in (3) load banks that are individually controllable via software interface to reboot selected equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. The USB and DB9 serial monitoring ports support messaging of detailed UPS operating parameters and line power status. PowerAlert software provides UPS monitoring and unattended shutdown with management support for an unlimited number of network UPS systems.
Multi-funciton audible alarm and (5) front panel LEDs give you at-a-glance notification of UPS and line power status. The UPS provides 7.5 minutes of battery runtime with a full load (1500VA) and 21 minutes at half load (750VA). Runtime is expandable with the optional BP36V15-2U external battery pack (limit 1) or the optional BP36V42-3U (multi-pack compatible). Hot-swap battery replacement is made easy via the built-in access panel.
This unit gives you complete power protection in an attractive black 2U rackmounted configuration. It includes (8) battery supported outlets arranged in (3) load banks that are individually controllable via software interface to reboot selected equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. The USB and DB9 serial monitoring ports support messaging of detailed UPS operating parameters and line power status. PowerAlert software provides UPS monitoring and unattended shutdown with management support for an unlimited number of network UPS systems.
Multi-funciton audible alarm and (5) front panel LEDs give you at-a-glance notification of UPS and line power status. The UPS provides 7.5 minutes of battery runtime with a full load (1500VA) and 21 minutes at half load (750VA). Runtime is expandable with the optional BP36V15-2U external battery pack (limit 1) or the optional BP36V42-3U (multi-pack compatible). Hot-swap battery replacement is made easy via the built-in access panel.
-
43.50 lbs
-
LEDS ALARMS & SWITCHES
LED Indicators: (5) LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Alarms: Audible alarm indicates power-failure and low-battery conditions
Alarm cancel operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Switches: (2) Switches control off/on power status and alarm-cancel/self-test operation
SURGE / NOISE SUPPRESSION
UPS AC suppression rating: 480 Joules
UPS AC suppression response time: Instantaneous
EMI / RFI AC noise suppression: Yes
PHYSICAL
Installation form factors supported with included accessories: 4-post 19 inch rackmount (mounting rail kit included)
Installation form factors supported with optional accessories: 2-post rackmount (2POSTRMKITWM, optional); Wallmount (2POSTRMKITWM, optional); Tower (2-9USTAND, optional)
Primary form factor: 2U Rackmount
COMMUNICATIONS
Communications interface: USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring port description: Supports detailed monitoring of UPS and site power conditions
PowerAlert software: Included
Communications cable: USB and DB9 cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time: 2-4 milliseconds
Low voltage transfer to battery power (setpoint): 75V
High voltage transfer to battery power (setpoint): 147V
SPECIAL FEATURES
Grounding lug: Back panel grounding lug
Cold Start (startup in battery mode during a power failure): Cold-start operation supported
High availability UPS features: Hot swappable batteries
Green & high efficiency features: Individually controllable load banks
CERTIFICATIONS
UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); ROHS (Reduction of Hazardous Substances); TAA Compliant -
# Ports: 8Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
UPS, 4-post rackmount hardware, cabling for USB & DB9 monitoring and EPO switching, Poweralert software, documentation
-
Attributes: Line interactiveColor: BlackEnclosure Type: InternalForm Factor: 2U RackmountForm Factor: ExternalWarranty Period: 2 yearsWeight Taxonomy: 43.43lbs
-
3.5"h x 17.5"w x 13.5"d
-
Built-in UPS output receptacles: (8) 5-15R outlets
Built-in controllable switched load banks: (3) switchable two-outlet 5-15R load banks
UPS input connection type: 5-15P
UPS Input cord length: 10ft (3m) -
Battery Run Time (max): 7.5minPower Capacity (VA): 1500VAPower Provided: 1000WPower Provided: 1350Surge Suppression: StandardVoltage Provided: 120VVoltage Provided: 36V
-
OUTPUT
Output Capacity: 1500VA/1350W
Output power factor: 0.9
Nominal Output Voltages Supported: 120V
Frequency compatibility: 60Hz
Output voltage regulation (line mode): -14%, +6%
Output voltage regulation (battery mode): +/- 5%
Output AC waveform (AC mode): Sine wave
Output AC waveform (battery mode): PWM sine wave
INPUT
Rated input current (at maximum load): 12A
Nominal Input Voltages Supported: 120VAC
Recommended Electrical Service: 15A, 120V
BATTERY
Full load runtime: 4.9 min. (1350W)
Half load runtime: 14 min. (675W)
DC system voltage: 36VDC
Battery recharge rate (included batteries): Less than 4.5 hours from 10% to 90%
Replacement battery cartridge (internal UPS battery replacement): RBC93-2U
Battery Access: Battery access door
Battery replacement description: Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145V
Overvoltage correction: Input voltages between 127 and 145V are reduced by 12%
Undervoltage correction: Input voltages between 95 and 108V are boosted by 12%
Severe undervoltage correction: Input voltages between 83 and 94V are boosted by 24% -
This product is subject to our return policy. Please see our complete return policy for details.
-
55 lbs
-
Compliant Standards: TAACompliant Standards: Yes
-
39121011
-
2 Years
-
2 Years
-
$250,000 connected equipment insurance (USA, Canada Only)
