Tripp Lite Metered PDU 1.4kW 120V 15A 1U RM NEMA 5-15P Input (13) NEMA 5-15R Outlets

Print page
Item#: 18656075 // MFG Part#: PDUMH15-6 // By: Tripp Lite

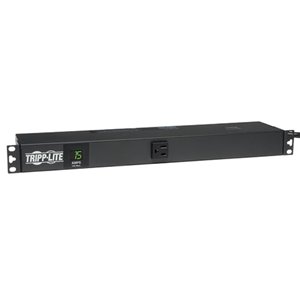

Tripp Lite PDUMH15-6 Main Image from Left-angle
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • In Stock
  • Ships in 1-2 Business Days
Ordering Information
Was
$140.40
$10.13 (7%)
Now
$130.27
Qty:
Tripp Lite Metered PDU/Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Built-in Digital Meter Provides Visual Monitoring of Single-Phase Power Distribution

Efficiently distribute and monitor power with Tripp Lite's PDUMH15-6 Single-Phase Metered Power Distribution Unit. It has a digital meter to provide the real-time current draw of connected equipment, allowing you to avoid overloading the PDU as devices are added. Unfiltered electrical pass-through makes the PDUMH15-6 ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures and network closets.
Built-in Digital Meter Provides Visual Monitoring of Single-Phase Power Distribution
Built-in Digital Meter Provides Visual Monitoring of Single-Phase Power Distribution
Built-in Digital Meter Provides Visual Monitoring of Single-Phase Power Distribution
Reliable Network-Grade Power Distribution

The PDUMH15-6 provides reliable 120V power service via 13 NEMA 5-15R outlets (1 front-facing, 12 rear-facing). It has a rugged all-metal housing and a 6 ft. power cord with NEMA 5-15P plug. This PDU also has a 15A circuit breaker, a TVSS rear grounding lug, and a switchless design to prevent accidental shutoff. Load capacity is 1.4kW.

Digital Load Meter for Real-Time Visual Monitoring

A two-digit load meter provides the real-time load level (in amps) of connected equipment. The meter helps ensure that the PDU is used at maximum capacity without danger of overload.
Built-in Digital Meter Provides Visual Monitoring of Single-Phase Power Distribution
Versatile Mounting Options

The PDUMH15-6 is easy to integrate with a wide range of data center and network applications. It has removable mounting flanges to support 1U (horizontal) and 0U (vertical) installation in 2- and 4-post racks. It’s also suitable for wall-mounting and under-counter mounting. The housing is reversible to face the front or back of the rack. For 0U (vertical) rack toolless button-mount installation, add Tripp Lite’s PDUSIDEBRKT bracket accessory.
Built-in Digital Meter Provides Visual Monitoring of Single-Phase Power Distribution
2-Year Warranty and Environmentally Responsible Design

The PDUMH15-6 comes backed by a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Built-in Digital Meter Provides Visual Monitoring of Single-Phase Power Distribution
Tripp Lite PDUMH15-6 Product Summary
  • Reliable power distribution in rack enclosures and network closets
  • Digital meter provides real-time visual monitoring of load level
  • Rugged all-metal housing with 13 NEMA 5-15R outlets (1 front-facing, 12 rear-facing)
  • 6 ft. cord with NEMA 5-15P plug
  • Removable mounting flanges support installation in 2- and 4-post racks; also supports wall-mount and under-counter installation
  • 2-year warranty
What’s in the Box
  • Single-Phase Metered Rackmount PDU
  • Removable Mounting Flanges
  • Owner’s Manual
Built-in Digital Meter Provides Visual Monitoring of Single-Phase Power Distribution
Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosure cabinets, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
