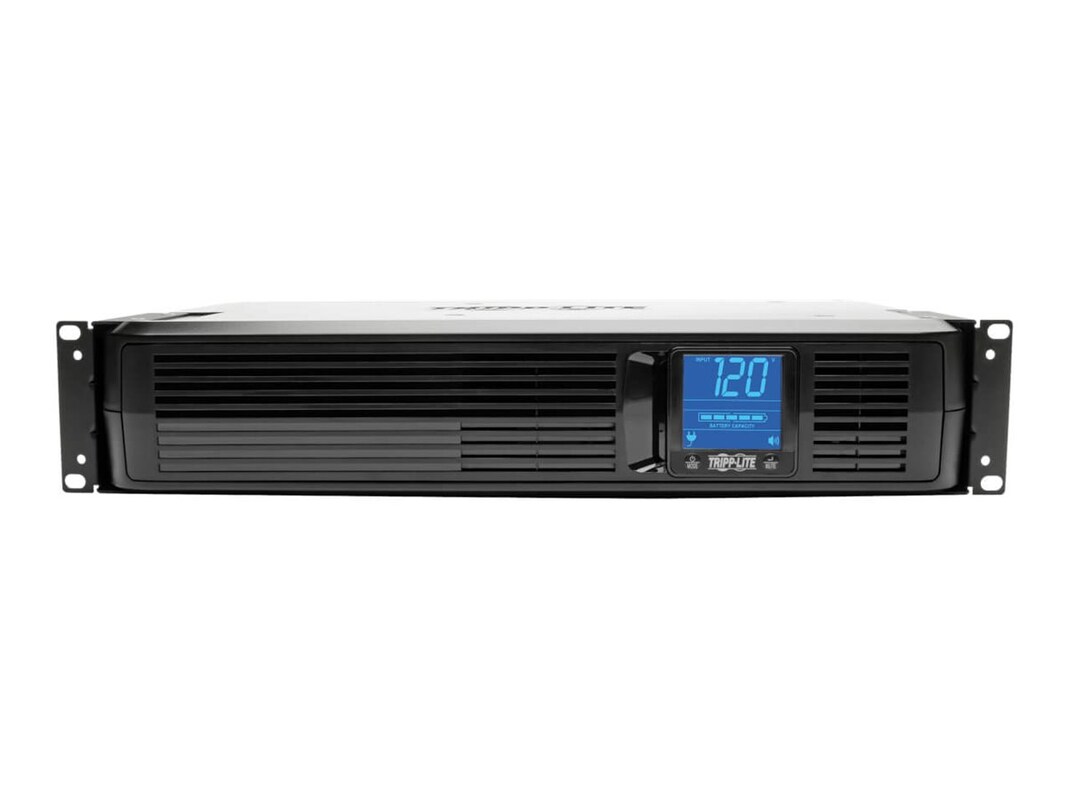

Tripp Lite LCD 1500VA 900W 2U Rack Tower Line-Interactive 120V UPS, Expandable Runtime, (Smart1500LCDXL)
-
In Stock
- Ships in 48 Hours
Ordering Information
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
Tripp Lite's SMART1500LCDXL Line-Interactive UPS System provides network-grade voltage regulation, surge suppression and long-lasting battery support which is ideal for network equipment, phone systems, desktop PCs and home entertainment systems. The Uninterruptible Power Supply (UPS) system provides battery derived AC output to maintain continuous operation of connected equipment without data loss during power failures and severe voltage fluctuations. Runtime is expandable with one additional BP24V15RT2U external battery pack (available separately). The Interactive LCD provides detailed site voltage and UPS status information plus a variety of UPS control options.
You benefit from reduced UPS energy consumption and BTU heat output due to its high 97% efficient line power mode operation. Automatic Voltage Regulation (AVR) circuits boost brownouts and reduce overvoltages from 75V to 147V to safe 120V nominal levels without using battery power.
The included mounting accessories enable 2U horizontal rackmount installation in 2 and 4-post racks or upright tower installation. Its built-in USB and DB-9 serial port enables optional unattended system shutdown in case of extended power failure using PowerAlert UPS management software. An HID-compliant USB interface enables integration with the built-in power management and auto shutdown features of Windows and Mac OS X. Built-in data line surge suppression jacks provide protection for equipment with single-line dialup, DSL or network Ethernet connections.
You benefit from reduced UPS energy consumption and BTU heat output due to its high 97% efficient line power mode operation. Automatic Voltage Regulation (AVR) circuits boost brownouts and reduce overvoltages from 75V to 147V to safe 120V nominal levels without using battery power.
The included mounting accessories enable 2U horizontal rackmount installation in 2 and 4-post racks or upright tower installation. Its built-in USB and DB-9 serial port enables optional unattended system shutdown in case of extended power failure using PowerAlert UPS management software. An HID-compliant USB interface enables integration with the built-in power management and auto shutdown features of Windows and Mac OS X. Built-in data line surge suppression jacks provide protection for equipment with single-line dialup, DSL or network Ethernet connections.
-
29.40 lbs
-
LEDS ALARMS & SWITCHES
LED Indicators: Front panel LCD
Front panel display: Numeric LCD interface reports Input Voltage, Output Voltage, Battery Charge Percentage, Estimated Runtime in Minutes, Load Percentage, Load Watts; Additional LCD icons report battery charge level (5 "bars"), Line Power Mode, Battery Mode, Replace Battery and Auto-Voltage Regulation / AVR status; LCD interface control options include Alarm Disable, Display Scrolling, Initiate Self-test, LCD brightness, External Battery setting and line sensitivity
Alarms: Audible alarm indicates power-failure and low-battery conditions; Alarm can be permanently silenced via LCD interface
Alarm cancel operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Switches: (2) Switches control off/on power status and alarm-cancel/self-test operation; dimmer switch controls LCD brightness
SURGE / NOISE SUPPRESSION
UPS AC suppression rating: 1038 Joules
UPS AC suppression response time: Instantaneous
UPS Dataline suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC noise suppression: Yes
PHYSICAL
Installation form factors supported with included accessories: Tower
Included mounting accessory description: Pair of mounting ears enable tower and 2-4 post rackmount installation
Primary form factor: Rackmount
COMMUNICATIONS
Communications interface: USB (HID enabled); DB-9 Serial; Contact closure
Network monitoring port description: Supports detailed monitoring of UPS and site power conditions
PowerAlert software: Free download from www.tripplite.com
Communications cable: USB and DB-9 Serial cabling included
WatchDog compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time: 4 milliseconds AC to battery mode / 3 milliseconds battery to AC mode
Low voltage transfer to battery power (setpoint): 75V
High voltage transfer to battery power (setpoint): 147V
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure): Cold-start operation supported
Green & high efficiency features: Greater than 95% efficiency - GREEN UPS
CERTIFICATIONS
UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI) -
# Ports: 8Communication Interface: Contact closureCommunication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
UPS, USB/serial/telephone cabling, rack/tower mounting kit, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Line interactiveAttributes: RJ-11 line protectionAttributes: RJ-45 line protectionColor: BlackEnclosure Type: InternalForm Factor: 2U RackmountForm Factor: ExternalForm Factor: TowerWarranty Period: 3 yearsWeight Taxonomy: 29.32lbs
-
3.5"h x 17.3"w x 10.5"d
-
Built-in UPS output receptacles: (8) 5-15R outlets
UPS input connection type: 5-15P
UPS input connection description: Space-saving right-angle input plug
UPS Input cord length: 6ft (1.8m) -
Battery Run Time (max): 4minPower Capacity (VA): 1500VAPower Provided: 900Power Provided: 900WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 115/120V
-
OUTPUT
Output capacity: 1500VA/900W
Nominal output voltages supported: 115V, 120V
Frequency compatibility: 60Hz
Output voltage regulation (line mode): -18%, +8%
Output voltage regulation (battery mode): 115V (+/- 5%)
Output AC waveform (AC mode): Sine wave
Output AC waveform (battery mode): PWM sine wave
INPUT
Rated input current (at maximum load): 8.5A
Nominal input voltage supported: 120VAC
Recommended electrical service: 15A, 120V
Input circuit breaker: 10A
BATTERY
Full load runtime: 4 minutes (900W)
Half load runtime: 12 minutes (450W)
External battery pack compatibility: BP24V15RT2U (limit 1)
DC system voltage: 24VDC
Battery recharge rate (included batteries): Less than 4.5 hours from 10% to 90%
VOLTAGE REGULATION
Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147V
Overvoltage correction: Input voltages between 128 and 147V are reduced by 12%
Undervoltage correction: Input voltages between 93 and 107V are boosted by 14%
Severe undervoltage correction: Input voltages between 75 and 92V are boosted by 30% -
This product is subject to our return policy. Please see our complete return policy for details.
-
42 lbs
-
Compliant Standards: CSACompliant Standards: FCC Part 15 BCompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: UL 1778
-
39121011
-
2 Years
-
2 Years
-
2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty. Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
