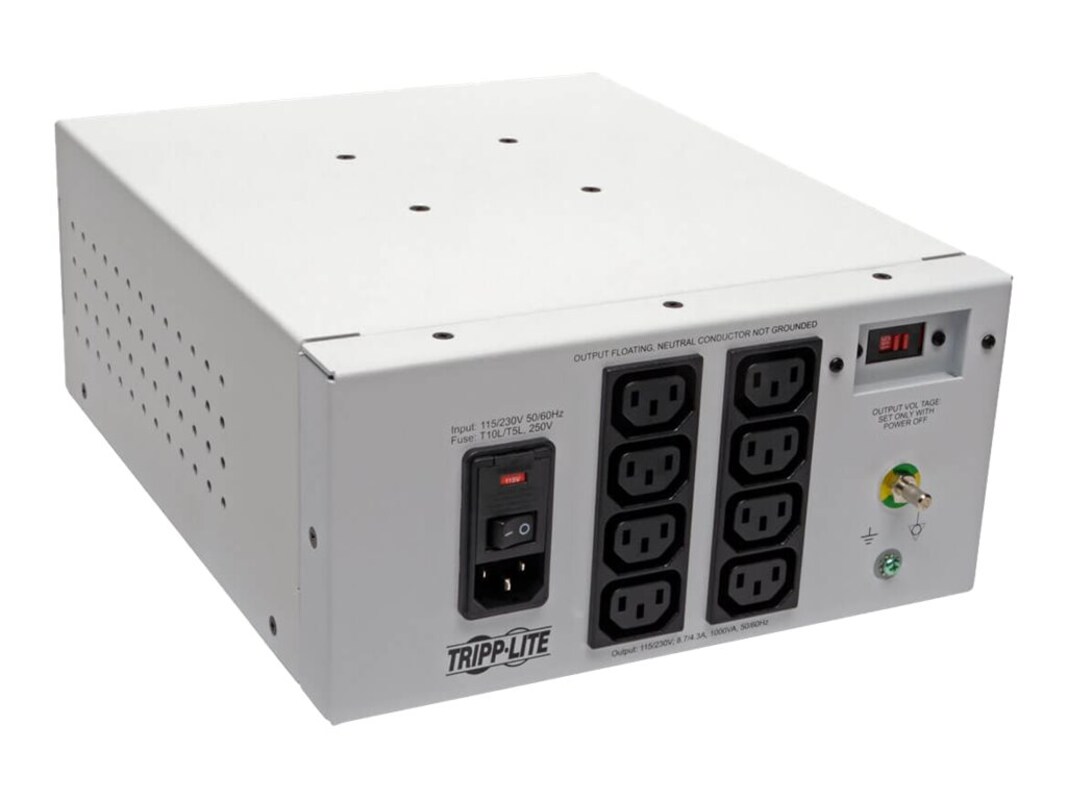

Tripp Lite Isolator Series Dual-Voltage 115 230V 1000W Medical Isolation Transformer, C14 Inlet (8) C13 Outlets

30.25 lbs

Note: Requires a C14-to-C13 AC input cord (sold separately).

Full CAN/ES/IEC/EN 60601-1 Medical-Grade Listing with C14 Inlet and 8 C13 Outlets:
Ideal for protecting sensitive electronic equipment in patient-care vicinities
Reduces cumulative leakage current of Isolator and connected equipment to levels less than 80 µA
Inexpensive alternative to dedicated circuits and site electrical upgrades
Rugged all-metal housing designed to withstand frequent use in busy environments
C14-to-C13 AC input cord required (sold separately)

Selectable 115/230V Input/Output Voltage Suitable for Most Applications:
Step-up, step-down or pass-through voltage operation (input frequency always equals output frequency)
Internal low-impedance toroidal isolation transformer with Faraday shield offers 100% isolation from mains AC power line
Automatically shuts down all outlets in case of overload
Ships ready for placement in any industrial, medical, office, network or audio/video environment

Protects Connected Equipment from Dangerous Spikes, Surges and Line Noise:
Line isolation, continuous noise filtering and 240 joules of AC surge protection
Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
Floating AC output prevents noise coupling from noisy ground circuits
Reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode

Transformer, (2) fuse sets (115V and 230V operation), input/output cable selector data sheet, documentation

5.13"H x 9.84"W x 11.81"D

Efficiency: 96%
Nominal Voltage / Frequency: 115/230 VAC 50/60 HZ (Voltage Selected by Input Power Module Fuse Installation
Over Current Protection: 2X15A @ 115V and 2X8A at 230V ( Both Fuses included with Product as Accesories)
VA / Watt Capacity: 1000
Transformer Type: Medical Grade, Low Impedence Toroid- Line Isolation (Pass Through or Step UP or Step Down)

Output Receptacles: (IEC 320) C13
Output Receptacle Details: Qty 8
Output (VA): 1000
Output (Watts): 1000
Output Nominal Voltage: 115V/230V (Selected by Output Switch) Can also be step up or step down, Selected when Installing Fuses.
Output Amp Capacity: 8.7@ 115V/ 4.3@230V

Nominal Input Voltage Description: 115/230 VAC (Selected by Input Power Module Fuse Installation) Operating Input Voltage Range 100-125Vac or 200-250VAC
Input Frequency: 50/60HZ
Maximum Surge Amps: 70A
Input Current: 10A @ 115V / 5A @ 230V
THDi: Less than 1%
Power Input Receptacle: IEC-320-C14

AC Suppression Joule Rating: 240
IEEE587 Cat. A Ringwave Let-Through: Reduced to 0.5v Common Mode
Noise Suppression Rating: 35-65db

Output Isolation Transformer: Toroid with AC output Floating with Respect to Earth Ground POAG Connector and Earth Ground Stud
Leakage Current: Max AC Leakage Current 80 (uA)

Cooling Method: Convection
Material of Construction: Sheet Metal Cabinet
Color: White

Operating Temperature Range: 0 C-40 C(32F to 104F), Intended Application is in a controlled environment at approx. 25 C.
Storage Temperature Range: -15 C to 50 C (5F to 122F)
Operating Elevation (m): 0-3000M (0-10,000 Ft)
Operating Humidity Range: 5% to 95% RH (Non-Condensing)

System Type Selections: Input Voltage equals Output Voltage OR 120V input equals 230V output OR 230V Input equals 120V output - (Selectable when installing Fuses) Input Frequency always equals Output Frequency

This product is subject to our return policy. Please see our complete return policy for details.

32.32 lbs

39121006

2 Years

2 Years

2-year limited warranty
