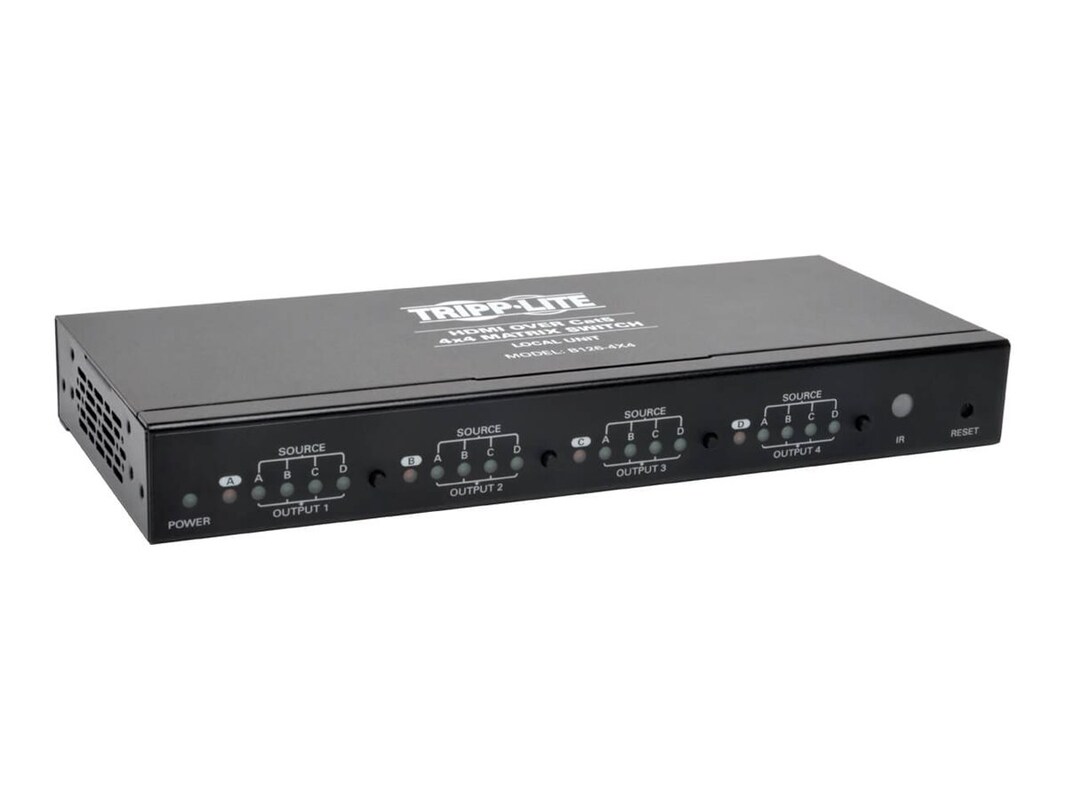

Tripp Lite 4x4 HDMI F F over Cat5 Cat6 Matrix Extender Switch with x4 RJ-45 , TAA

Key Features

Share multiple HDMI sources between multiple monitors
Allows any input to be routed to any output; or the same input to be routed to multiple outputs
Transmits the signal over one Cat5e/6 cable to a remote monitor up to 175 ft. away
A B126-Series remote receiver is needed at each monitor
For longer distances: Use a B126-1A0 or B126-1A0-WP-1 active remote receiver (available separately) to extend a 1080p @ 60Hz signal up to 125 ft. from the transmitter (or a 1080i @ 60Hz signal up to 175 ft. from the transmitter)
For shorter distances: Use a B126-1P0 or B126-1P0-WP-1 passive remote receiver (available separately) to extend a 1080p @ 60Hz signal up to 50 feet from the transmitter (or a 1080i @ 60Hz signal up to 75 feet from the transmitter)
Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series (available separately), to achieve maximum distance and resolution
Further expand the range and number of monitors by adding B126-110 remote repeater units
Add up to three repeaters on each channel of the matrix switch, for a total of 4 displays per channel (An active remote receiver should be the last unit in a channel)
A 1080p @ 60Hz signal can be extended up to 125 feet for each repeater added into a channel (or up to 175 feet for a 1080i @ 60Hz signal)
Switch between inputs via pushbuttons, remote control,or RS232 serial
HDCP-compatible
Mounting hardware included
Plug-and-play; no software or drivers required
Compatible with all operating systems
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Transmitter unit, external power supply, 3.5mm to DB-9 adapter cable, mounting hardware, remote control, documentation

1.2"h x 5"w x 3.9"d

Connector A: (42) HDMI (Female)
Connector B: (42) RJ-45 (Female)

This product is subject to our return policy. Please see our complete return policy for details.

2.4 lbs

52161540

1 Year

1 Year
