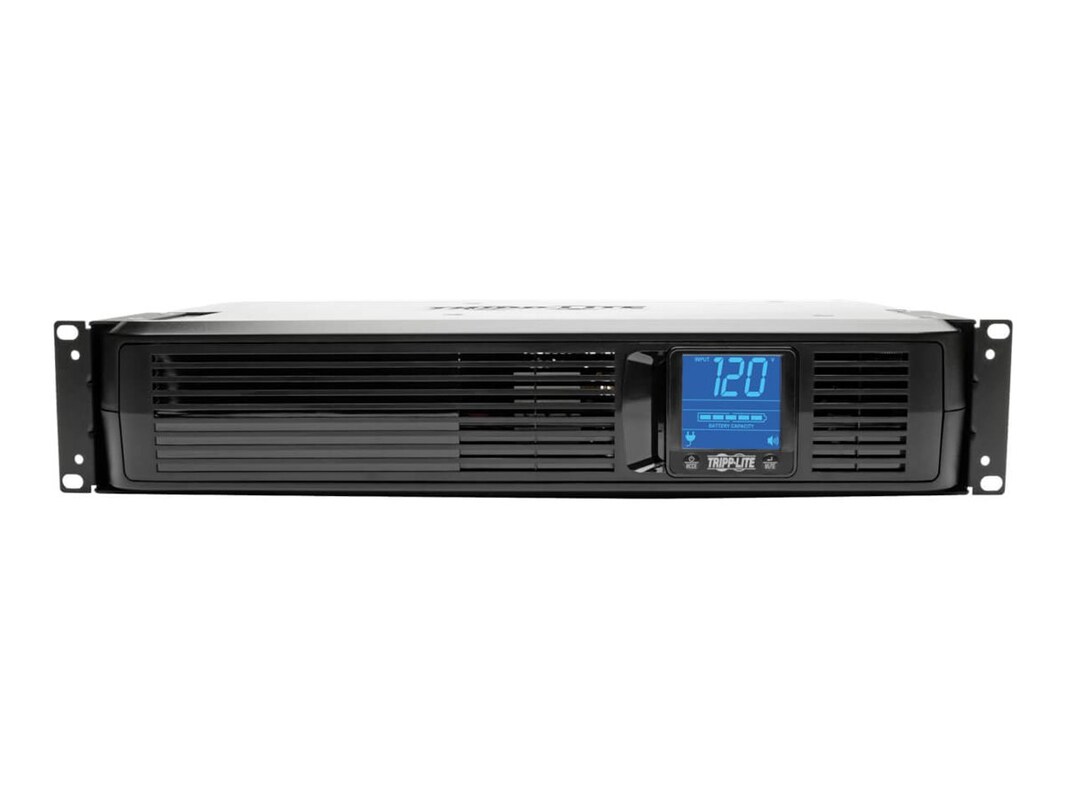

Tripp Lite's SMART1200LCD Line-Interactive Digital UPS System gives you voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures. This prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power.
This unit gives you complete power protection with support for upright tower, flat shelfmount or 2U rackmount installation in an attractive all-black cabinet design. Features include (8) battery-supported outlets and built-in USB and DB9 serial ports which enable optional unattended system shutdown without data loss in case of an extended power failure. The HID-compliant USB interface enables integration with the built-in power management and auto shutdown features of Windows and Mac OS X. The built-in single-line RJ-45 jacks give you protection for equipment with single-line telephone/DSL or network Ethernet connections. A built-in audible alarm and large LCD front panel voltage display provides line power status, battery power status, battery low/replace status and voltage boost operation. Its 1200VA/700W power-handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components.
This unit gives you complete power protection with support for upright tower, flat shelfmount or 2U rackmount installation in an attractive all-black cabinet design. Features include (8) battery-supported outlets and built-in USB and DB9 serial ports which enable optional unattended system shutdown without data loss in case of an extended power failure. The HID-compliant USB interface enables integration with the built-in power management and auto shutdown features of Windows and Mac OS X. The built-in single-line RJ-45 jacks give you protection for equipment with single-line telephone/DSL or network Ethernet connections. A built-in audible alarm and large LCD front panel voltage display provides line power status, battery power status, battery low/replace status and voltage boost operation. Its 1200VA/700W power-handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components.
-
25.00 lbs
-
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
UPS, USB cable, DB9 cable, phone cable, mounting hardware, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Line interactiveColor: BlackEnclosure Type: InternalForm Factor: 2U RackmountForm Factor: ExternalForm Factor: TowerWarranty Period: 3 years
-
3.5"h x 17.25"w x 10.5"d
-
(8) NEMA 5-15R battery-supported outlets
(1) NEMA 5-15P input cord, 6ft.
(1) USB communications port
(1) DB-9 RS-232 serial communications port
Set of phone/network protection jacks protects a single dialup/DSL phone line or network Ethernet connection -
Battery Run Time (max): 4minBattery Run Time (max): 5minPower Capacity (VA): 1200VAPower Provided: 700Power Provided: 700WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
Voltage compatibility: 120V
Frequency compatibility: 60Hz
Output
Output capacity: 700W/1200VA
Output nominal voltage: 120VAC
Output voltage regulation, battery mode: PWM sine wave 115V +/-5%
Output frequency regulation, line mode: passes line frequency of 60Hz +/- 10%
Output frequency regulation, battery mode: inverter output regulated to 60Hz +/- 0.5Hz
Input
Maximum input current: 7A
Recommended electrical service: 120V, 15A
Battery
Full load runtime: 4 minutes (700W)
Half load runtime: 12 minutes (350W)
DC system voltage: 24VDC
Battery recharge rate (included batteries): Less than 4.5 hours from 10% to 90%
Voltage Regulation
Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75V to 147V
Overvoltage correction Input voltages between 128V and 147V are reduced by 12%
Undervoltage correction Input voltages between 93V and 107V are boosted by 14%
Severe undervoltage correction Input voltages between 75V and 92V are boosted by 30%
AC surge suppression: 480 joules
AC suppression response time: instantaneous
EMI / RFI AC noise suppression -
This product is subject to our return policy. Please see our complete return policy for details.
-
27 lbs
-
39121011
-
2 Years
-
2 Years
-
2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty. Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
