TP-LINK MC110CS Media Converter, 10 100Mbps RJ45 to 100M Singlemode SC Fiber, up to 1.2mi, Chassis Mountable

Print page
Item#: 13544138 // MFG Part#: MC110CS // By: TP-LINK

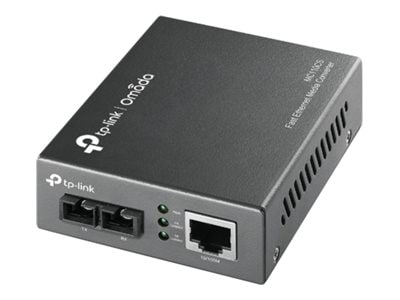

TP-LINK MC110CS Main Image from Left-angle
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • In Stock
  • Ships in 1-2 Business Days
Ordering Information
$34.99
Qty:
  • Ethernet 100Base-FXEthernet 100Base-TXEthernet 10Base-T Transceiver
  • 100.0Mbps100Mbps Transfer Rate
  • Ethernet, Fast Ethernet Protocol(s)
  • FCC Compliant
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19" system chassis, Auto MDI/MDI-X for TX port, auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
