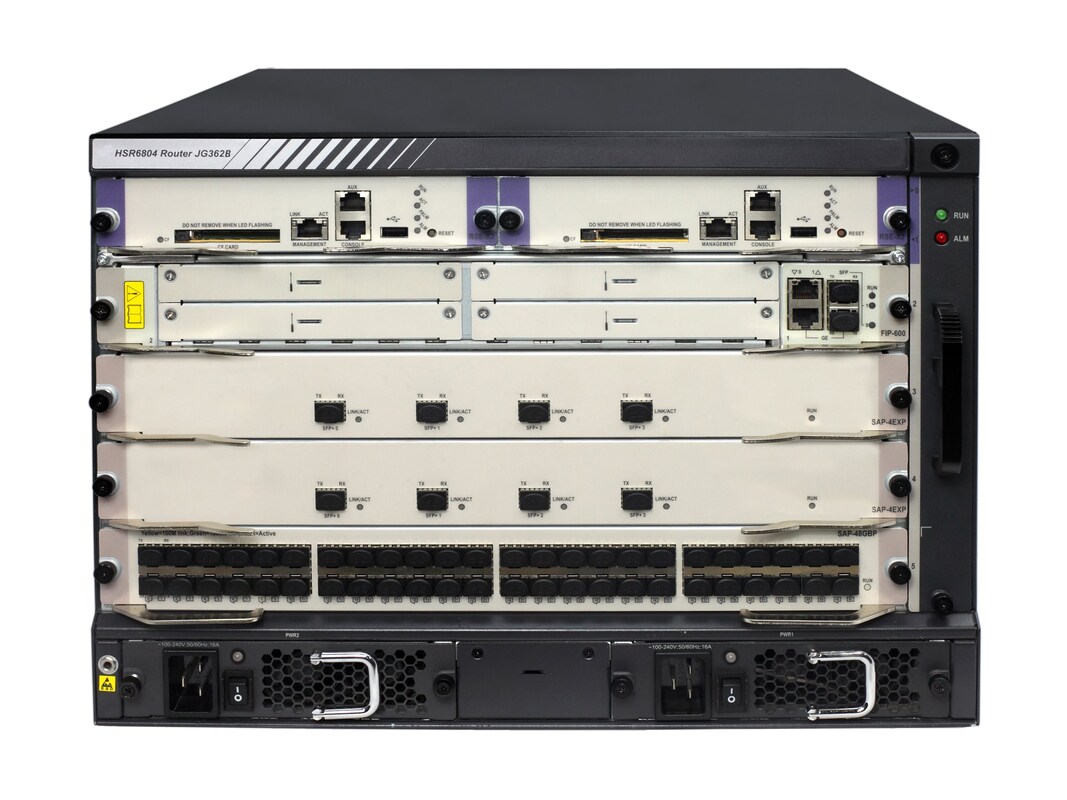

The HPE HSR6804 Router Chassis is a 7RU high-performance distributed architecture router platform that supports 2 MPUs in 1+1 redundancy and up to 4 service line cards. It provides up to 1.024 Tbps backplane bandwidth and 480 Mpps throughput.
-
56.20 lbs
-
Connectivity Technology: Wired
-
Chassis
-
Color: BlackForm Factor: Rack-mountableWarranty Period: 1-year warrantyWeight Taxonomy: 56.22lbs
-
Throughput: up to 480 Mpps
Routing table size: 4000000 entries (IPv4); 2000000 entries (IPv6)
Forwarding table size: 1000000 entries (IPv4); 1000000 entries (IPv6)
Backplane bandwidth: 1024 Gbps
Mounting and enclosure: EIA standard 19" rack -
Flash Memory Installed Size: 1GBRAM (installed): 4GBRAM Technology: DDR3 SDRAM
-
Modem Type: None
-
Networking Type: Modular expansion base
-
12.1"h x 17.2"w x 19"d
-
(4) SAP slots or (8) HIM slots or (16) MIM slots, or a combination
-
# Power Supplies Supported: 2
-
Maximum power rating: 851W
-
# Processors Installed: 1Processor Speed: 1GHzProcessor Type: PowerPC
-
Networking Protocol: IEEE 802.1adNetworking Protocol: IEEE 802.1agNetworking Protocol: IEEE 802.1ahNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1S (MSTP)Networking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1w (RSTP)Networking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3acNetworking Protocol: IEEE 802.3adNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3aeNetworking Protocol: IEEE 802.3ahNetworking Protocol: IEEE 802.3iNetworking Protocol: IEEE 802.3i (10BASE-T)Networking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: RMONRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: RMON 3Remote Management Protocol: RMON 9Remote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: TelnetRemote Management Protocol: TFTPRouting Protocol: BGPRouting Protocol: BGP-4Routing Protocol: Bidirectional Forwarding Detection (BFD)Routing Protocol: GRERouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: IS-ISRouting Protocol: MLDRouting Protocol: MPLSRouting Protocol: MSDPRouting Protocol: Multiprotocol BGPRouting Protocol: OSPFRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: PIM-DMRouting Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: RIPRouting Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routingRouting Protocol: VRRPTransport Protocol: ARPTransport Protocol: DHCPTransport Protocol: IPSecTransport Protocol: L2TPTransport Protocol: NTPTransport Protocol: RSVPTransport Protocol: TCP/IPTransport Protocol: UDP/IP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
72.99 lbs
-
Compliant Standards: AS/NZS 60950Compliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: EN 300 386Compliant Standards: EN 301 489-1Compliant Standards: EN 301 489-17Compliant Standards: EN 60825-2Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-6-1Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: ETSICompliant Standards: FCC CFR47 Part 15Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: KN22Compliant Standards: KN24Compliant Standards: UL 60950-1Compliant Standards: VCCI V-3 Class A ITECompliant Standards: VCCI V-4
-
43222609
-
1 Year
-
1 Year
