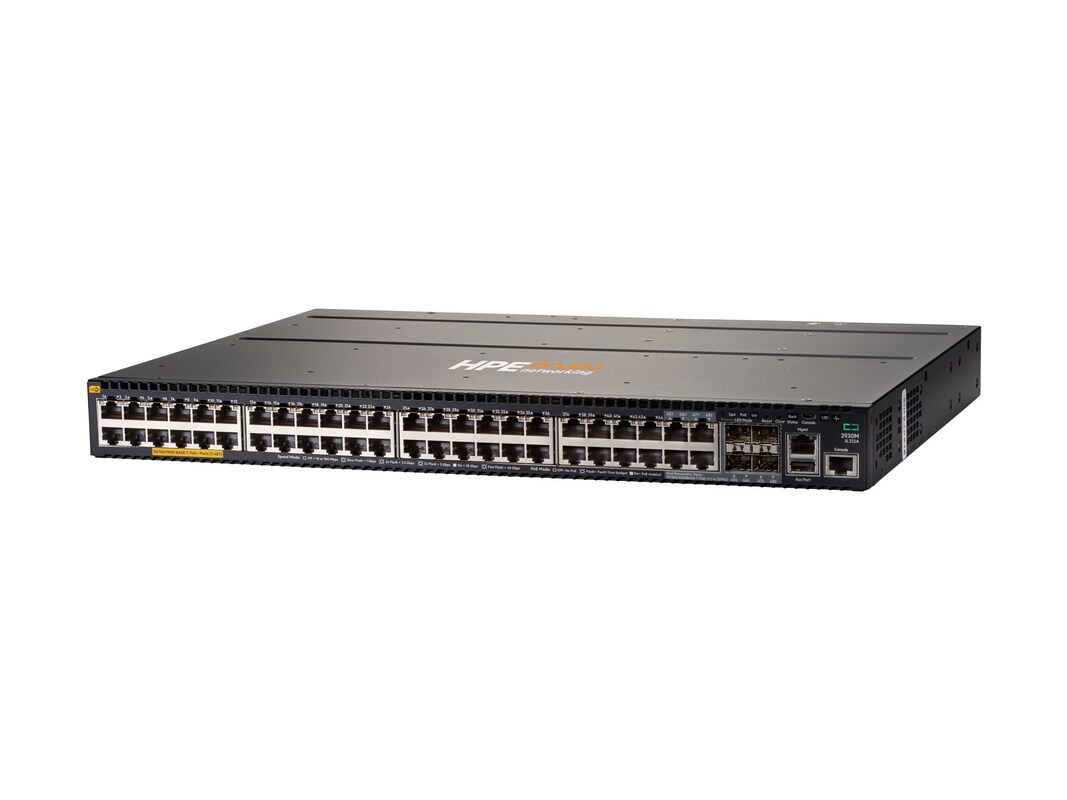

The Aruba 2930M Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba
ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support.
ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support.
-
10.30 lbs
-
# Ports: 4# Ports: 44
-
Switch, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 10.25lbs
-
10 Mbps Latency: < 98.5µs (FIFO 64 byte packets)
100 Mbps Latency: < 11.8µs (FIFO 64-byte packets)
1000 Mbps Latency < 3.1µs (FIFO 64-byte packets)
10 Gbps Latency: < 3.4µs (FIFO 64-byte packets)
Throughput: 112 Mpps
Stacking Performance: 100 Gbps
Switching Capacity: 176 Gbps
Switching Capacity (Including Stacking): 276 Gbps
Routing Table Size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
Mac Address Table Size: 32768 entries
Primary Airflow: Direction Port to Power -
RAM (installed): 1GBRAM (installed): 4GBRAM Technology: DDR3 SDRAMRAM Technology: Flash
-
Processor: Dual Core ARM Cortex A9 @ 1016 MHz
1GB DDR3 SDRAM
4GB eMMC Flash
Packet Buffer Size: 12.38MB and 4.5MB Ingress/7.875MB Egress -
Networking Type: Switch
-
1.7"h x 17.4"w x 12.8"d
-
I/O:
(44) GbE PoE+ autosensing
(4) GbE Base-T/SFP combo
(1) RJ45/USB micro-B dual personality serial console
(1) USB Type B
(1) FE (100Base-T) out of band management
(1) uplink slot
(1) stacking module slot
(2) power supply slots (power supplies sold separately) -
# Power Supplies Installed: 0# Power Supplies Supported: 2
-
Idle Power: 40W
PoE Power (Max Possible): 1440W
Power Supply not included.
2 power supplies are supported: JL086A PSU (each): 470W JL087A PSU (each): 860W
-
# Processors Installed: 1Processor Manufacturer: ARMProcessor Model Number: A9Processor Speed: 1.016GHzProcessor Type: CortexProcessor Type: Cortex-A9
-
Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1adNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3bzNetworking Protocol: IEEE 802.3xNetworking Protocol: PoE+Remote Management Protocol: CLIRemote Management Protocol: FTPRemote Management Protocol: HTTPRemote Management Protocol: RMON 1Remote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2Remote Management Protocol: TelnetRemote Management Protocol: XRMONRouting Protocol: CIDRRouting Protocol: ECMPRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: OSPFRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: RIPRouting Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IP routingRouting Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routing
-
