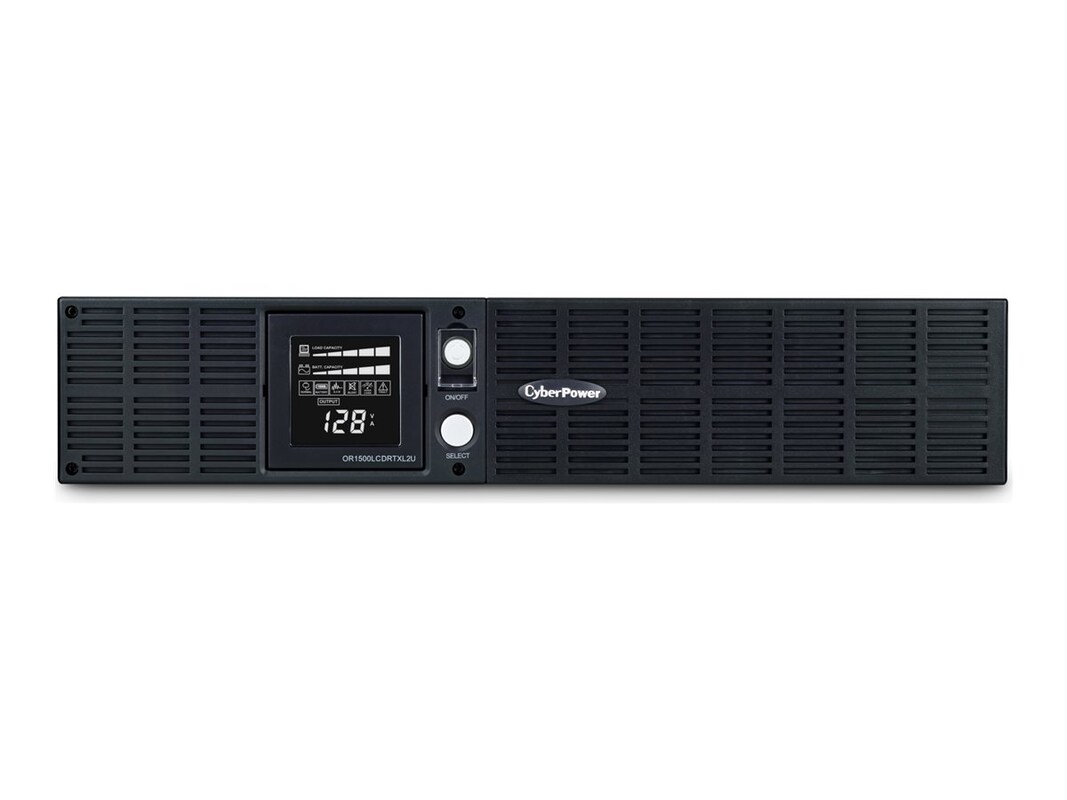

The CyberPower Smart App Intelligent LCD OR1500LCDRTXL2U uninterruptible power supply (UPS) safeguards internetworking hardware, telecom equipment, workstations and home entertainment systems that do not have active PFC power supplies. Its full automatic voltage regulation (AVR) boost/buck topology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. The Smart App Intelligent LCD Series UPS is designed to protect office servers, corporate and departmental networks and network-based appliances.
The OR1500LCDRTXL2U unit has a capacity of 1500VA/1125Watts, eight (8) NEMA 5-15R receptacles and four (4) maintenance-free, user-replaceable 12V/7Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ11/RJ45 ) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS). A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
The OR1500LCDRTXL2U unit has a capacity of 1500VA/1125Watts, eight (8) NEMA 5-15R receptacles and four (4) maintenance-free, user-replaceable 12V/7Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ11/RJ45 ) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS). A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
-
59.50 lbs
-
Surge Energy Rating: 1840 Joules
SNMP / HTTP Remote Monitoring: Yes, with optional RMCARD100
Overload Protection: Internal circuitry limiting / circuit breaker
Audible Alarms: On battery, low battery, overload
Multifunction LCD Diagnostic Display: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode
Software: PowerPanel Business Edition
Additional Information
Microprocessor-Based Digital Control: Digital routing is maintained through a network of integrated circuitry and discrete values that are used for internal system processing, which significantly increases efficiency and responsiveness.
RM/T Configuration: The Smart App Sinewave UPS can be installed in either a Tower or Rack Mount (2U) configuration.
Full AVR: Boost/Buck topology increases low voltages and decreases high voltages, without switching to battery-mode. This conserves battery life and delivers power with a more stable and consistent voltage to connected equipment.
GreenPower UPS: GreenPower UPS technology significantly reduces UPS energy costs by bypassing the AVR transformer when incoming AC power is clean. This not only dramatically reduces utility consumption, but also reduces heat dissipation and system noise.
EMI/RFI Filters: Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment.
Dual PC Support: The Smart App Sinewave UPS has two (2) serial communication ports to connect two PCs or servers, giving the user full control and the ability to prioritize their operation.
Multi-function Rotatable LCD Display: UPS battery status and power conditions are easily viewed on this Crystal Blue readout when the UPS is rack mounted or standing as a tower.
Audible Alarms: Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low.
Resettable Circuit Breaker: Convenient unit reset switch in case of an overload.
Metal Housing: Rugged, industrial-grade metal construction allows for installation of the unit in demanding environments.
PowerPanel Business Edition: This software suite manages the power for all servers and computers supported by the UPS on a network. Features include application/OS shutdown, event logging (power, surge, and voltage variations), hibernation mode, internal reports and analysis, as well as remote management capability for comprehensive power control.
3-Year Warranty: Stringent manufacturing processes and innovative product design enables CyberPower to offer one of the strongest warranties in our industry. CyberPower will repair or replace damaged units within three (3) years of purchase date.
Technical Support Team: CyberPower assists users with any product, installation, or warranty concerns – no additional charge.
ISO and Safety Certifications: All CyberPower manufacturing facilities are state-of-the-art and ISO-9001 Quality Tested. Our products are certified by the FCC, cUL, and UL.
Windows Compatibility: Our PowerPanel power management software has been fully tested and is compatible with Windows 2000, 2003, XP 32/64, Vista 32/64, 7, and Server 2008. -
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
UPS, rackmount brackets, (2) stands, (2) USB cables, (1) serial cables, (2) phone cables, EPO cable, software, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Coaxial line protectionAttributes: Line interactiveAttributes: RJ-11 line protectionAttributes: RJ-45 line protectionColor: BlackForm Factor: 2U RackmountForm Factor: ExternalWarranty Period: 3 yearsWeight Taxonomy: 59.52lbs
-
3.5"h x 17"w x 18.8"d
-
(8) NEMA 5-15R outlets
(1) NEMA 5-15P input cord, 10ft.
(2) DB-9 RS-232 serial communications ports
(1) USB communications port
(2) Phone/Ethernet RJ11/RJ45 1-In, 1-Out (Combo)
(2) Coax Protection RG6 1-In, 1-Out
(1) Expansion slot for optional Web/SNMP card -
Battery Run Time (max): 7minPower Capacity (VA): 1500VAPower Provided: 1125Power Provided: 1125WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 12VVoltage Provided: 120V
-
Output
Load Capacity: 1500VA/1125W
Output Voltage: 120VAC
Output Frequency: 60Hz +/- 1%
Input
Input Voltage: 90-140VAC
Input Freq.: 47-63Hz
Batteries
Battery Quantity/Type: (4) 12V/7Ah
Sealed Lead-acid: Yes
User-replaceable: Yes
Battery Life: 3-6 Years
Runtime (Full Load): 7 Minutes
Runtime (Half Load): 19 Minutes
Recharge Time: 8 Hours
Replacement Battery: BB Battery - BP7-12
Battery Quantity: (4) -
This product is subject to our return policy. Please see our complete return policy for details.
-
84 lbs
-
Compliant Standards: CULCompliant Standards: DOC-BCompliant Standards: FCCCompliant Standards: ISO 9001Compliant Standards: RoHSCompliant Standards: UL 1778
-
OS Required: Microsoft Windows 2000OS Required: Microsoft Windows 2003OS Required: Microsoft Windows 7OS Required: Microsoft Windows Server 2008OS Required: Microsoft Windows Vista (32/64 bits)OS Required: Microsoft Windows XPOS Required: Microsoft Windows XP 64-bit Edition
-
39121011
-
3 Years
-
3 Years
-
$300,000 Lifetime Connected Equipment Guarantee
