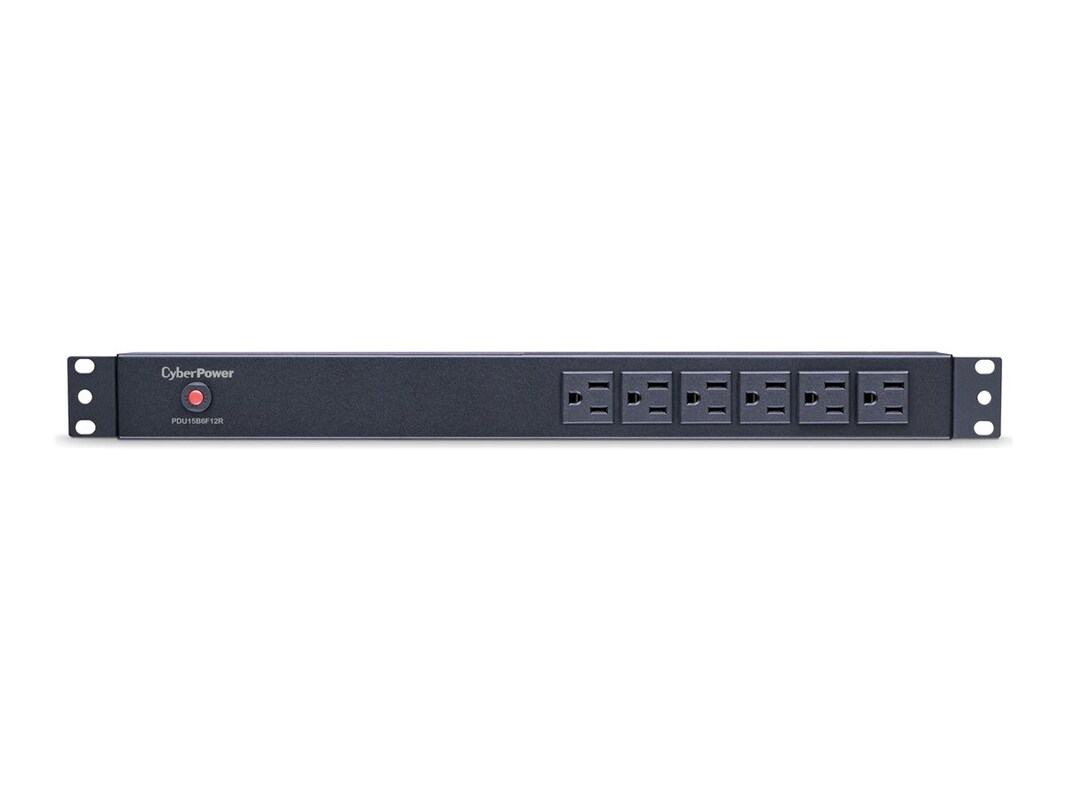

The CyberPower 18-outlet (6 front and 12 rear) rack mount basic power distribution unit (PDU15B6F12R) provides 120V 15A output. It distributes power to 18 NEMA 5-15R receptacles from a single NEMA 5-15P input, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing. It can be mounted either horizontally or vertically.
-
4.00 lbs
-
Style: Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (2) sets(L-short/L-long)
External Site Ground Pin: Yes
Certifications
UL1363 certified by ETL (USA), CSA C22.2 (Canada), RoHS Compliant -
# Ports: 18Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
PDU, rack mounting hardware, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: 1U RackmountForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 3.97lbs
-
1.75"h x 17.5"w x 2.25"d
-
Input
Plug Type: NEMA 5-15P
Plug Style: Straight
Cord Length: 15ft
Output
Outlets Total: (18, 6 Front, 12 Rear)
Outlet Type: NEMA 5-15R -
Voltage Provided: 120VVoltage Provided: AC 120V
-
Input
Voltage: 120V
Current: 15A max
Frequency: 50/60Hz
Output
Overload Protection: 15A
Nominal Output Voltage: 120V -
This product is subject to our return policy. Please see our complete return policy for details.
-
5.7 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 1363
-
